Engineered for Safety, Ergonomics, and Reliability

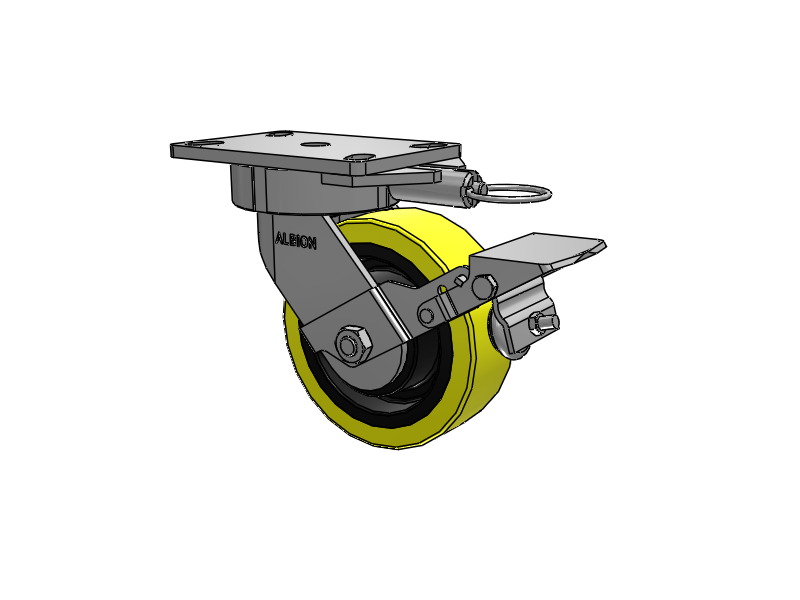

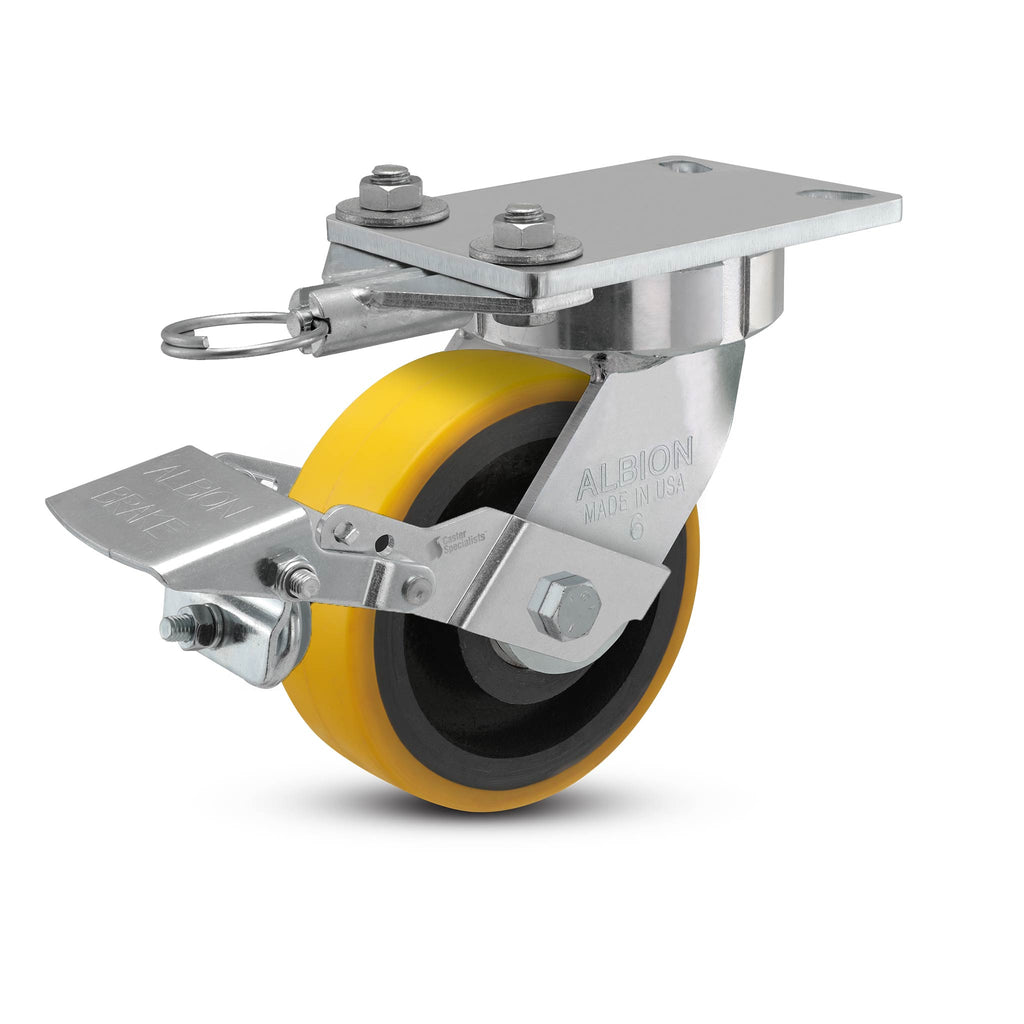

The Albion 38PF06228SLFBK swivel caster is built to improve workplace safety while delivering unmatched mobility for heavy-duty equipment. This ergonomic and completely maintenance-free caster is ANSI ICWM tested and backed by a 3-year premium warranty, making it the ideal solution for demanding manual and towed industrial applications where floor protection, easy of movement, and quiet mobility is a priority.
Key Safety & Ergonomic Advantages
-
USA Maintenance-Free Rig – Sealed precision ball bearings in both swivel section and wheel eliminate the need for lubrication for the life of the caster.
-
Effortless Mobility – Reduced push/pull forces help minimize operator fatigue and lower injury risks.
-
Extended Lead Design – Allows smooth caster alignment, easier steering, and reduced chatter in towed or high-speed applications.
-
Toe Guard Protection – Helps shield operators’ feet from accidental impacts and keeps debris clear from the wheel path.
-
Positive Face Brake – Easy-to-engage brake locks the wheel securely during loading, unloading, or stationary use.
-
4-Position Swivel Lock – Converts the swivel into a rigid caster when needed for precise directional control.
Premium Heavy-Duty Polyurethane-on-Iron Wheel
-
Material: High-performance polyurethane tread (95 Shore A hardness) bonded to precision-machined cast iron core.
-
Performance: Combines the load capacity of metal wheels with excellent floor protection, shock absorption, and quiet rolling.
-
Bond Quality: Chemically bonded tread resists separation under heavy loads and torque.
-
Tread Profile: Radius tread enhances maneuverability while maintaining stability.
-
Chemical & Moisture Resistance: Resists water, oils, greases, and most chemicals.
-
Temperature Range: -40°F to 180°F for versatile use in varied environments.
Specifications
-
Wheel Size: 6" diameter x 2" wide polyurethane-on-iron
-
Capacity: 2,000 lbs dynamic load per caster
-
Top Plate Size: 6-1/4" x 4-1/2"
-
Brake Type: Easy to activate and deactivate face brake with positive grip-pad
-
Swivel Lock: 4-position
-
Toe Guard: Integrated into legs
-
Rig Type: Albion ergonomic extended-lead swivel rig
-
Finish: Zinc plated for corrosion resistance
-
Bearings: Sealed precision ball bearings (wheel and swivel)
-
Warranty: 3 years
-
Testing: ANSI ICWM tested for safety and performance
Ideal Applications
-
Industrial carts and dollies
-
Heavy-duty towed warehouse equipment
-
Bulk material handling trucks
-
Waste disposal and transport carts
-
Any operation requiring high capacity and ergonomic efficiency
Need a rigid, brake-free, or alternative wheel version?
This premium Albion ergonomic series is readily available in multiple configurations to meet your exact requirements—contact us for options and volume pricing.
